高频晶体管 High frequency transistor
Package										Vceo	Ic	fT
SOT-323	SOT-23	SOT-143	SOT-143R	SOT-89	TO-50-3	TO-50	TO-92S	TO-92	M	(V)	(mA)	(MHz)	Ic(mA)
2SC3936	2SC2788						2SC3313	2SC829	2SC2647	20	30	230	1
2SA1532 2SC3930	2SA1022 2SC2295						2SA1323 2SC3314	2SA838 2SC1359	2SA1254 2SC2206	20	30	250	1
									2SC2188	35	50	500	10
								2SC1687		25	30	550	5
								2SC1688		40	30	550	5
							GC3195			30	20	600
2SC3931	2SC2404						2SC3315	2SC1047	2SC2377	20	20	650	1
2SC3933	2SC3077					2SC2360(H)				15	20	900	3
	GC3077									15	30	900	3
	MMBTH10									25	50	900
								2SC1789		18	50	980	10
	S9018									15	50	1100
2SC3932	2SC2480						2SC3354	2SC1215	2SC2636	20	50	1200	15
2SC4068	2SC3967									20	20	1500	1.8
	2SC4238									15	50	1500	15
2SC3935	2SC3130									10	50	1900	5
2SC4239										10	50	2000	5
	2SC2734 2SC3838							GC3838		11	50	3200
2SC4410	2SC3707									7	10	4000	1
2SC3934	2SC3110									12	30	4500	10
	2SC2845							2SC2671(H)		12	70	4500	20
2SC3937	2SC3704							2SC2671(F)		14	80	5500	40
	GC3356			GC3357		GC3358		GC3355		10	100	6000	20
				2SC4703						12	150	6000
				2SC3357		2SC3358		2SC3355		12	100	6500
2SC5065										12	30	7000
	2SC4515									10	50	7000	30
2SC5463										12	60	7000
	2SC3829									10	80	7000	30
2SC5085	2SC5084		2SC5087							12	80	7000
	2SC3356				BFR91A					12	100	7000
				BFQ591						12	150	7000
			2SC4315							12	80	7500
		BFP196		BFU580						12	100	7500
2SC4228 BFR182W	BFR182	BFP182								12	35	8000
	PBR941									10	50	8000
BFR183W	BFR183									12	65	8000
	PBR951	BRF9511								10	70	8000
	2SC4516									10	80	8000	20
BRF947										10	50	8500
PRF957										10	70	8500
2SC4899										9	20	9000
2SC4901	2SC5218		2SC4900							9	50	9000
	2SC4591									15	50	9000
	2SC3904 2SC3583		2SC4094							10	65	9000	20
BFS540	BFR540	BFG540/X								10	70	9000	40
BFS520	BFR520	BFG520/X								10	70	9000	20
	2SC4593		2SC4592							9	50	9500
	2SC3585									10	35	10000
			2SC4926							8	50	11000
	BRF93A									12	100	6500

通用晶体管 Transistor
Part Number	Polarity	Ic	HFE		BVceo (V)	BVcbo (V)	BVebo (V)	VCES,VBES			Package
Part Number	Polarity	Ic	Test Condition	HFE	BVceo (V)	BVcbo (V)	BVebo (V)	Test Condition	VCES (V)	VBES (V)	Package
SS9018	NPN	50mA	5V,1mA	70-250	15	30	5	10mA,1mA	0.5		TO-92/SOT-23/SOT523
BC856C	PNP	-100mA	-5V,-2mA	420-800	-65	-80	-5	-10mA,-0.5mA	-0.3		SOT-23/SOT-323
KTA1268	PNP	-100mA	-6V,-2mA	200-700	-120	-120	-5	-10mA,-1mA	-0.3	-1.2	TO-92
SS9014	PNP	150mA	5V,1mA	100-300	50	60	5	100mA,10mA	0.25	1	TO-92/SOT-23
SS9015	PNP	-150mA	-5V,-1mA	100-300	-50	-60	-5	-100mA,-10mA	-0.25	-1	TO-92/SOT-23
2SC1815	NPN	150mA	6V,2mA	120-450	50	60	5	100mA,10mA	0.25	0.95	TO-92/SOT-23/SOT-323
2SA1015	PNP	-150mA	-6V,-2mA	120-400	-50	-60	-5	-100mA,-10mA	-0.25	-0.95	TO-92/SOT-23/SOT-323
2N3904	NPN	200mA	1V,10mA	100-300	40	60	6	Ic=50mA,Ib=5mA	0.3	0.95	TO-92/SOT-23/SOT-323/SOT-523
2N3906	PNP	-200mA	-1V,-10mA	100-300	-40	-40	-6	Ic=-50mA,Ib=-5mA	-0.4	-0.95	TO-92/SOT-23/SOT-323/SOT-523
MPSA44	NPN	300mA	10V,10mA	100-200	400	400	5	10mA,1mA	0.19	0.73	SOT-89/TO-92
MPSA94	PNP	-300mA	-10V,-10mA	100-200	-400	-400	-5	-10mA,-1mA	-0.19	-0.73	SOT-89/TO-92
LBTN03400 LMBTA44LT1G	NPN	300mA	10V,10mA	80-200	400	400	5	10mA,1mA	0.19	0.85	TO-92/SOT-89/SOT-23
LMBTA94	PNP	-300mA	-10V,-10mA	80-160	-400	-400	-5	-10mA,-1mA	-0.3	0.85	TO-92/SOT-23/SOT-89
SS9013	NPN	500mA	1V,50mA	120-400	25	40	5	500mA,50mA	0.6	1.2	TO-92/SOT-23
SS9012	PNP	-500mA	-1V,-50mA	120-320	-25	-40	-5	-500mA,-50mA	-0.6	-1.2	TO-92/SOT-23
S8050	NPN	0.5A	1V,100mA	100-300	25	40	6	800mA,80mA	0.5	1.2	TO-92/SOT-23/SOT-323
MPSA42	NPN	500mA	10V,10mA	100-200	300	300	6	20mA,2mA	0.5	0.9	TO-92/SOT-89
MPSA92	PNP	-500mA	-10V,-10mA	100-200	-300	-300	-5	-20mA,-2mA	-0.5	-0.9	TO-92/SOT-89
2N2222	NPN	600mA	10V,150mA	100-300	40	75	6	500mA,50mA	1	2	SOT-23/SOT-323/TO-92/SOT-223
2N2907	PNP	-600mA	-10V,-150mA	100-300	-60	-60	-5	-500mA,-50mA	-1	-2	SOT-23/SOT-323/TO-92/SOT-223
2N5551	NPN	600mA	5V,10mA	80-250	160	180	6	10mA,1mA	0.15	1	TO-92/SOT-89/SOT-23/SOT-223
2N5401	PNP	-600mA	-5V,-10mA	80-250	-160	-180	-6	-10mA,-1mA	-0.15	-1	TO-92/SOT-89/SOT-23/SOT-223
BC817-16	NPN	800mA	1V,100mA	120-200	45	50	5	500mA,50mA	0.7	1.2	SOT-23/SOT-323
BC817-25	NPN	800mA	1V,100mA	200-350	45	50	5	500mA,50mA	0.7	1.2	SOT-23/SOT-323
BC817-40	NPN	800mA	1V,100mA	350-550	45	50	5	500mA,50mA	0.7	1.2	SOT-23/SOT-323
BC807-16/25	PNP	-800mA	-1V,-100mA	120-350	-45	-50	-5	-500mA,-50mA	-0.7	-1.2	SOT-23/SOT-323
M28S	NPN	1A	1V,100mA	300-1000	20	50	6	800mA,80mA	0.6	1.2	TO-92/SOT-23
2SC1384	NPN	1A	10V,500mA	85-340	50	60	6	800mA,80mA	0.25	1.2	SOT-89/TO-92NL
2SB1132	PNP	-1A	-3V,-100mA	82-390	-32	-40	-5	-0.5A,-50mA	-0.5	-1.2	SOT-89/TO-92NL
BCX56	NPN	1A	2V,150mA	100-200	85	105	6	500mA,50mA	0.5	1	SOT-89
BCX53	PNP	-1A	-2V,-150mA	100-200	-85	-105	-6	-500mA,-50mA	-0.5	-1	SOT-89
LBTN180D3T1G	NPN	1A	2V,150mA	100-200	85	105	6	500mA,50mA	0.5	1	SOT-89
LBTP180D3T1G	PNP	-1A	-2V,-150mA	100-200	-85	-105	-6	-500mA,-50mA	-0.5	-1	SOT-89
LMBT495NELT1G LBTN1150DPTUG	NPN	1A	10V,250mA	100-300	150	170	7	0.5A,50mA	0.285	0.95	SOT-89/TO-92NL
LMBT495PELT1G	PNP	-1A	-5V,-0.1A	100-300	-160	-180	-6	-0.25A,-25mA	-0.475	-1.05	SOT-89/TO-92NL
LMBT491NELT1G	NPN	1A	5V,500mA	100-300	60	80	7	1A,100mA	0.237	1.04	SOT-89/TO-92NL
LMBT493PELT1G	PNP	-1A	-10V,-250mA	100-300	-100	-120	-5	-1A,-100mA	-0.57	-1.05	SOT-89/TO-92NL
LBTP160WT1G	PNP	-1A	-5V,-1A	100-300	-60	-80	-5	-1A,-100mA	-0.34	-1.1	SOT-89/TO-92NL
KSC1008	NPN	1A	2V,50mA	100-400	60	80	8	Ic=500mA,50mA	0.4	1.1	SOT-89/TO-92/TO-92NL
KSA708	PNP	-1A	2V,-50mA	120-240	-60	-80	-8	Ic=-500mA,-50mA	-0.7	-1.1	SOT-89/TO-92/TO-92NL
2SD667A	NPN	1A	5V,150mA	100-200	150	150	5	0.5A,0.05A	1	1.5	TO-92NL
2SB647A	PNP	-1A	-5V,-150mA	100-200	-150	-150	-5	-0.5A,-0.05A	-1	-1.5	TO-92NL
2SD1898	NPN	1A	3V,500mA	80-390	80	100	5	500mA,20mA	0.4	1.2	SOT-223/SOT-89/TO-252
2SB647A	PNP	-1	-5V,-150mA	100-200	-80	-100	-5	-500mA,-50mA	-1	-1.2	TO-92NL
D1616A	NPN	1A	2V,100mA	200-400	60	120	6	1A,0.05A	0.5	1.2	SOT-89/TO-92/TO-92NL
MPS751	PNP	-1A	-2V,-100mA	160-300	-60	-80	-6	-1A,-0.05A	-0.3	-1.2	SOT-89/TO-92/TO-92NL
FCX493	NPN	1A	10V,250mA	160-300	100	120	7	1A,100MA	0.6	1.15	TO-92
2SC2383	NPN	1A	5V,200mA	160-300	160	160	6	0.5A,0.05A	1.2	2	TO-92/TO-92NL/SOT-89
2SA1013	PNP	-1A	-5V,-200mA	160-300	-160	-160	-6	-0.5A,-0.05A	-1.2	-2	TO-92/TO-92NL/SOT-89
S8550	PNP	-1.2A	-1V,-100mA	100-300	-25	-40	-6	-800mA,-80mA	-0.5	-1.2	TO-92
HE8050	NPN	1.5A	1V,100mA	100-320	25	40	-6	800mA,80mA	0.5	1.2	SOT-23/SOT-89/TO-92
HE8550	PNP	-1.5A	-1V,-100mA	100-320	-25	-40	-6	-800mA,-80mA	-0.5	-1.2	SOT-23/SOT-89/TO-92
2SD669A	NPN	1.5A	5V,150mA	100-320	160	180	6	0.5A,0.05A	0.9	1.2	SOT-223/SOT-89/TO-92NL
2SB649A	PNP	-1.5A	-5V,-150mA	100-200	-160	-180	-6	-0.5A,-0.05A	-1	-1.5	SOT-223/SOT-89/TO-92NL
FMMT591	PNP	-1.5A	-5V,-500mA	100-300	-60	-80	-6	Ic=-1A,Ib=-100mA	-0.6	-1.2	SOT-23
LBSS4240	NPN	2A	2V,1A	300-600	40	40	5	2A,200mA	0.3	1.05	SOT-23
LBSS5240	PNP	-2A	2V,1A	200-400	-40	-40	-5	-2A,-200mA	-0.33	-1.05	SOT-23
2SC2655	NPN	2A	2V,500mA	100-340	50	50	5	1A,50mA	0.5	1.2	SOT-89/TO-92NL
2SA1020	PNP	-2A	-2V,-500mA	100-340	-50	-50	-5	-1A,-50mA	-0.5	-1.2	SOT-89/TO-92NL
2SB1188	PNP	-2A	-3V,-500mA	120-270	-32	-40	-5	-2A,-200mA	-0.8	-1.2	SOT-89
B772	PNP	-2A	-5V,-1mA	160-320	-30	-40	-5	-2A,-200mA	-0.5	-2	TO-126/TO-126C
A928A	PNP	2A	-2V,-500mA	100-300	-30	-30	-5	-1.5A,-0.03A	-0.4	-1	TO-92/TO-92NL
2SC4672	NPN	2A	2V,0.5A	100-400	50	60	6	2A,200mA	0.35	2	SOT-89
2SD1857	NPN	2A	5V,100mA	80-390	120	120	6	1A,0.1A	0.4	1.2	TO-92/TO-92NL
2SC5171	NPN	2A	5V,100mA	100-320	180	180	5	1A,0.1A	1		TO-220/TO-263-2L
2SA1930	PNP	-2A	-5V,-100mA	100-320	-180	-180	-5	-1A,-0.1A	-1		TO-220/TO-263-2L
FZT956	PNP	-2A	-5V,-1A	100-300	-200	-220	-6	-1A,-100mA	-0.15		SOT-223
D882	NPN	3A	2V,1A	100-300	30	40	5	2A,200mA	0.5	2	TO-126/TO-126C
B772	PNP	-3A	-2V,-1A	100-300	-30	-40	-5	-2A,-200mA	-0.5	-2	TO-126/TO-126C
PBSS4350	NPN	3A	2V,100mA	＞300	50	60	5	-0.5A,-0.05A	0.08		SOT-223
			2V,500mA	＞300				1A,50mA	0.16
			2V,1A	＞300				2A,100mA	0.28	1.1
			2V,2A	＞200				2A,200mA	0.26
			2V,3A	＞100				3A,300mA	0.37	1.2
PBSS5350	PNP	-3A	2V,100mA	＞200	-50	-60	-5	-0.5A,-0.05A	-0.09		SOT-223
			2V,500mA	＞200				1A,50mA	-0.18
			2V,1A	＞200				2A,100mA	-0.32	-1.1
			2V,2A	＞130				2A,200mA	-0.27
			2V,3A	＞80				3A,300mA	-0.39	-1.2
D880	NPN	3A	5V,0.5A	100-240	60	60	7	3A,0.3A	0.5	2	TO-220/TO-263-2L
B834	PNP	-3A	5V,0.5A	100-240	-60	-60	-7	-3A,-0.3A	-0.5	-2	TO-220/TO-263-2L
TIP31C	NPN	3A	4V,1A	20-100	100	100	5	3A,0.375A	1.2	2	TO-220/TO-252/TO-251
TIP32C	PNP	-3A	-4V,-1A	20-100	-100	-100	-5	-3A,-0.375A	-1.2	-2	TO-220/TO-252/TO-251
FZT953	PNP	-4A	-5V,-1A	100-300	-140	-180	-6	-1A,-100mA	-0.15	-1.2	SOT-223
FZT955	PNP	-4A	-5V,-1A	100-300	-140	-180	-6	-1A,-100mA	-0.15	-1.2	SOT-223
LBTP560Y3T1G	PNP	-4.3A	-1V,-2A	100-300	-60	-100	-5	-5A,-500mA	-0.23	-1	SOT-89
LBTN4100	NPN	4.5A	2V,500mA	200-500	100	100	5	4A,400mA	0.22	1.05	SOT-89
PBSS304PZ	PNP	-4.5A	-2V,-1A	300-600	-60	-60	-5	-4A,-400mA	-0.23	-1.05	SOT-223
2SD965	NPN	5A	2V,0.5A	230-1200	20	40	6	3A,100mA	1	2	SOT-89/TO-92/TO-252
LBTN560Y3T1G	NPN	5A	1V,2A	100-300	60	150	7	5A,500mA	0.22	1.1	SOT-89
SA1012	PNP	-5A	-1V,1A	70-140	-50	-60	-5	-3A,-0.15A	-0.4		TO-220/TO-220F/TO-263-2L
LBTN560Z4TZHG	NPN	5.2A	2V,1A	300-600	60	60	5	4A,400mA	0.21	1.05	SOT-223
LBTN660Z4TZHG	NPN	6A	2V,1A	120-360	60	100	6	-6A,-600mA	0.3	0.9	SOT-223
LBTP660Z4TZHG	PNP	-6A	-2V,-1A	120-360	-60	-100	-6	-6A,-600mA	-0.35	-1	SOT-223
TIP41C	NPN	6A	4V,3A	15-100	100	100	5	6A,0.6A	1.5		TO-220/TO252-2L
TIP42C	PNP	-6A	-4V,-3A	15-100	-100	-100	-5	-6A,-0.6A	-1.5		TO-220/TO252-2L
BU406	NPN	7A	5V,0.5A	60-90	200	400	6	5A,0.5A	1	1.2	TO-220/TO-220F/TO-263-2L
MJD44	NPN	8A	1V,2A	60-200	80	80	5	8A,400mA	1		TO-252-2L/TO-251
MJD45	PNP	-8A	-1V,-2A	60-200	-80	-80	-5	-8A,-400mA	1		TO-252-2L/TO-251
MJE15032	NPN	8A	5V,500mA	70-120	250	250	5	1A,100mA	0.5		TO-220
MJE15033	PNP	-8A	-5V,-500mA	100-140	-250	-250	-5	-1A,-100mA	-0.5		TO-220
MJE2955	PNP	-10A	-4V,-4A	20-100	-60	-70	-5	-4A,-0.4A	-1.1		TO-220/TO-251/TO-252-2L
KTD718B	NPN	10A	5V,1A	55-160	120	120	5	6A,0.6A	2		TO-3P
KTB688B	PNP	-10A	-5V,-1A	55-160	-120	-120	-5	-5A,-0.5A	-2.5		TO-3P
2SC5200	NPN	15A	5V,1A	55-160	370	370	5	8A,0.8A	3		TO-3P
2SA1943	PNP	-15A	-5V,-1A	55-160	-370	-370	-5	-8A,-0.8A	-3		TO-3P
TIP35C	NPN	25A	4V,1.5A	25-80	100	100	5	15A,1.5A	1.8		TO-3PML
TIP36C	PNP	25A	-4V,-1.5A	25-80	-100	-100	-5	-15A,-1.5A	-1.8		TO-3PML

功率晶体管 Power Transistor
型号/PART NO	封装/PACKAGE	包装/PACKAGING	最低起订数量 /MOQ	兼容型号/Ref.
TIP41C	TO-220	50/Tube,2000/Box	2000
TIP41C	TO-252-2L	80/Tube,4000/Box	4000	MJD41C
TIP42C	TO-220	50/Tube,2000/Box	2000
TIP42C	TO-252-2L	80/Tube,4000/Box	4000	MJD41C

功率达林顿晶体管 Power Darlington Transistor
型号/PART NO	封装/PACKAGE	包装/PACKAGING	最低起订数量/MOQ	兼容型号/Ref.
TIP122	TO-220	50/Tube,2000/Box	2000
TIP122	TO-263-2L	50/Tube,2000/Box	2000
TIP122	TO-252-2L	80/Tube,4000/Box	4000	MJD122
TIP127	TO-220	50/Tube,2000/Box	2000
TIP127	TO-263-2L	50/Tube,2000/Box	2000
TIP127	TO-252-2L	80/Tube,4000/Box	4000	MJD127
TIP142	TO-220	50/Tube,2000/Box	2000
TIP142	TO-263-2L	50/Tube,2000/Box	2000
TIP147	TO-220	50/Tube,2000/Box	2000
TIP147	TO-263-2L	50/Tube,2000/Box	2000
BU941ZP	TO-247	30/Tube,300/Box	3000
BU941ZP	TO-3P	30/Tube,300/Box	3000
BU941ZB	TO-220	50/Tube,2000/Box	2000	BU941ZT
BU941ZB	TO-263-2L	50/Tube,2000/Box	2000	BUB941ZT
D1071	TO-220	50/Tube,2000/Box	2000	2SD1071
D1071	TO-263-2L	50/Tube,2000/Box	2000	2SD1071

无标题文档

复合晶体管 Bult in Resistor Transistor

型号索引

GR1000

GR2000

GR3000

主要特性 (Ta=25 ℃ )

封装形式

SOT-23

TO-92S

TO-92

Pc(mW)

200

300

VCEO
(V)

IC
(mA)

hFE

RB
(KΩ)

RBE
(KΩ)

PNP

NPN

PNP

NPN

PNP

NPN

min

VCE(V)

IC(mA)

4.7

GR1101

GR1201

GR2101

GR2201

GR3101

GR3201

50
/
-50

100
/
-100

GR1102

GR1202

GR2102

GR2202

GR3102

GR3202

GR1103

GR1203

GR2103

GR2203

GR3103

GR3203

GR1104

GR1204

GR2104

GR2204

GR3104

GR3204

GR1215

GR2215

GR3215

100

GR1116

GR2116

GR3116

100

可代换的境外型号：DTA114EKA DTA114ESA DTA124EKA DTA124ESA DTA124TKA DTA124TSA DTA143EKA
DTA143ESA DTA144EKA DTA14 4ESA DTC114EKA DTC114ESA DTC114TKA
DTC114TSA DTC124EKA DTC124ESA DTC143EKA DTC143ESA DTC144EKA DTC144ESA

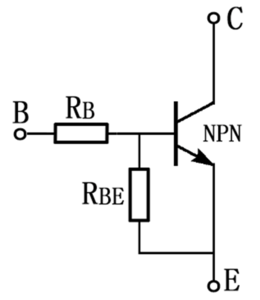

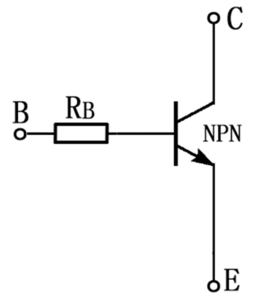

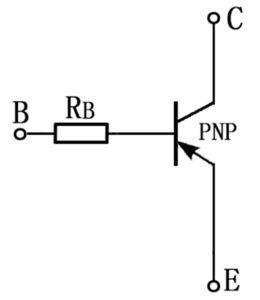

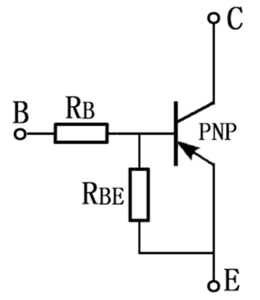

等效电路图

注 : 晶体管内部电阻值可以根据用户需要定制。
